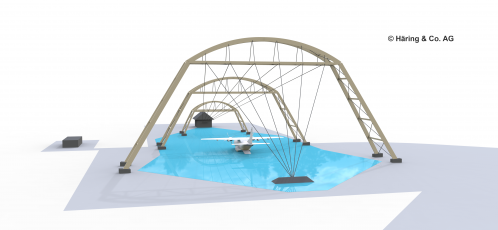

Montena technology has successfully built one of the largest outdoor NEMP simulator. The simulator is made up of a 140 meter (460 ft) long, 25 meter (82 ft) high radiating line suspended to a large wooden structure and connected to a 2 MV pulse generator. The delivered electromagnetic pulse fully complies with the specifications of the MIL-STD-461-E/F, paragraph RS105. The system is installed over an electric ground plane with a reinforced test area enabling the testing of heavy systems.
