Montena extends again its range of analog front-end over fibre for oscilloscope with the new MOL500T series, that ensures accurate transmission/ measurement of electric signals up to 500 MHz in harsh electromagnetic environments.
Main features
- DC – 500 MHz bandwidth
- 1 MΩ / 50 Ω input (BNC or SMA), enables connecting any sensing device (HV probe, current probe or specific means for HF measurements)
- Remote controlled input attenuator (1:1 / 10:1 / 100:1)

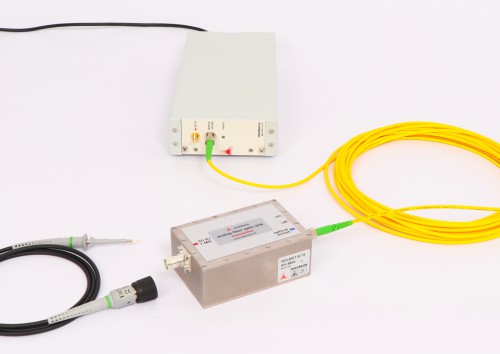

- Available in point-to-point (1 ch.) and multilink versions with up to 10 ch. per chassis
- Very high immunity to electromagnetic fields
- High autonomy, incl. battery level monitoring and standby mode
Multilink 19″ 2U chassis
- Up to 10 receivers per chassis, enable monitoring of up to 10 simultaneous signals
- Possibility to mix different link models (MOL25T, MOL500T, MOL2000T) in one chassis
- FibREmote Windows-based configuration tool
Applications
- High impedance measurements with high bandwidth (DC – 500 MHz)
- Real-time measurements in harsh electromagnetic environments or hardly accessible areas
- Measurements of fast transients on high-voltage floating potentials
- Measurements on fast-power semiconductors (SiC, GaN, …)
